REGA

Adevarata legenda vie a pietei Hi-Fi europene si mondiale, Rega, este prezenta de acum si in Romania,
datorita parteneriatului cu STEREO PLANET.

Recunoscuta pentru calitatea impecabila a produselor sale, Rega isi selecteaza foarte riguros partenerii.
Este unul din putinele Brand-uri care-si permit sa-si selecteze Distribuitorii dupa criterii legate atat de
competitivitatea acestora pe pietele in care activeaza cat si legate de calitatea oamenilor si principiilor din
spatele acestor Distribuitori.
Tocmai de aceea, NE ONOREAZA acest parteneriat.

THE STORY BEHIND THE VALVE ISIS
Rega’s now legendary head electronics engineer Terry Bateman spent 10 years researching the concept of
a CD player using valves in the output amplifier.
When it came to the inspiration for this project Terry drew on the enormous experience he gained while
working with musical instrument valve amplification, which dates back to the middle part of the 1970’s.
Terry’s concept was based on the need to have a playback chain, which is in harmony with the instruments
and equipment being used.
Valves have been widely used in musical instrument and recording amplification from the 1950’s to the present
day, therefore it made great sense to develop a valve based CD player to match that of the signal chain found
in such applications.
This approach kept the circuit straightforward, this is mainly because musical instrument amplification is not
excessively hindered by some of the folklore surrounding certain aspects of valve audio design.
He took the approach of combining the technical and sonic attributes of valves in a differential instrumentation
amplifier circuit driven from differential output DAC with a passive LC filter.
Careful choice of valves and the use of moderate levels of feedback keep the distortion at reasonable levels
thus keeping the colouration to a minimum.
The valve Isis became fully realised when he combined the valve project with the Wolfson high performance
differential output WM8741 DAC along with the digital playback circuitry of its solid state stable mate.

DESIGN
The valve Isis shares the same digital and USB sections as found in the solid state version however the
analogue stage is valve based with passive filtering.
This stage uses two military specification triple mica 5814A (ECC82/12AU7) triodes being driven by the
revolutionary Wolfson WM8741 ultra high performance digital to analogue converter.
The output buffer and transformer driver stage uses two ECC88 (6DJ8/6922) triodes.
This, like its solid-state stable mate, is of an un-orthodox design. The design goal with this player was to keep
away from the normal design approach of “lets run it through a valve to make it sound warm”, but take advantage
of industrial valve circuits to make an articulate and competent valve based CD player.
Careful choice has been made for every component in the digital and the analogue signal path to ensure the
integrity of the signal.
Careful design of the PCB’s ensures isolation of not just the digital and analogue sections, but also the motor,
display and user interface processor.
All sonically critical electrolytic capacitors have been by-passed with polypropylene or polyester film capacitors.
In addition to this, large value electrolytic capacitors have also been by-passed with audio grade
electrolytic capacitors.
Power supply impedances in the digital to analogue converter are kept very low by the use of solid
polymer capacitors.
All power supplies utilise custom Rega K-Power smoothing capacitors, and fast diodes have been used
throughout in power supply rectification. The Isis uses enhanced and optimised control code for the control of
the CD processor and user display; this will speed up the initialisation process by means of a tighter control
interface between the user micro and CD processor.

TECHNOLOGY
The differential output of the digital to analogue converter drives a valve differential (operational) amplifier, with
a very modest amount of feedback to stabilise the operating conditions.
The 5814A based differential amplifier, with a solid-state current generator in its tail, takes full advantage of the
differential output from the digital to analogue converter. This is followed by a passive Butterworth second order
LC filter.
Finally, this signal is buffered using a low anode resistance ECC88 to drive the output and balancing transformer.
In design it was felt that unnecessarily high levels of THD would unduly overwhelm the qualities of the digital stage
of the Isis.
The overall THD is typically 0.06% being prominently even order, where the 2nd harmonic predominates.
This will give the sonic dynamics of the valves without dominating the sonic qualities of the digital section.
After many hours of tube rolling we found the 5814A differential amplifier position was best on the grounds
of micro-phonics, reliable operation and sonic qualities.
Both the HT & LT power supplies are fully regulated and use the same power supply parts as used in the
solid state Isis.
Like the solid-state analogue stage valve Isis has it’s own dedicated 50VA mains transformer, ensuring
galvanic isolation between the digital and analogue sections of the player.
The Isis has an isolated balanced output, and in keeping with the spirit of the valve circuit topology we have
opted to use a transformer in this position.
This balancing transformer is made to the same exacting standards to that found in the IOS MC amplifier.

Specifications
Laser: Semiconductor laser
Wavelength: 780nm
Digital sampling frequency: 44.1kHz
Phono Unbalanced: 2.4V source impedance 600Ω
XLR Balanced: 2.4V source impedances 600Ω
Co-Axial SPDIF: 0.5V source impedance 75Ω
Toslink Toslink: compatible output
USB: 16bit 44.1/48KHz
THD+Noise: < 0.06%
Frequency Response: 30Hz - 20KHz +/-0.5dB

Power Consumption: 46W

Dimensions (H x W x D): 43.4 x 35 x 11.2 cm
Weight: 18 kg

Color: black

		Producator: --- Selecteaza producator --- ACOUSTIC REVIVEACOUSTIC SOLIDACROLINKACUSTICA APPLICATAADL by FURUTECHAIDAS CARTRIDGESAIR TIGHTAKIKOANALOG RELAXAPOLLOARTEARTESANIA AUDIOASTELL & KERNATACAMA AUDIOATLAS CABLESAUDIENCEAUDIO ENGINEERSAUDIO HUNGARYAUDIO REPLASAUDIO SELECTIONAUDIO SUSPENSIONAUDIOMATAYREBATBELBENZ MICROBERGMANNBEYERDYNAMICBLUE HORIZONBOULDERBRIGADIERBURMESTERBYBEE TECHNOLOGIESCA ELECTRONICSCAMBRIDGE AUDIOCARDASCARY AUDIOCHARIOCLEARAUDIOCOLD RAYCUBE AUDIOCUSTOM DESIGNDAVID LABOGADAVONEDIESIS AUDIODIPTYQUEDIVINE ACOUSTICSDR. FEICKERT ANALOGUEDS AUDIODSPeakerDUALDYNAUDIODeVORE FIDELITYELECTRO HARMONIXELROGENTREQESPRITESSENTIAL AUDIO TOOLSETSURO URUSHIFABIO & SONFINALEFOSTEXFRANC AUDIOFRANCO SERBLINFURUTECHFYNE AUDIOGENALEXGENERAL ELECTRICGIGAWATTGOLDMUNDGOLDRINGGRADOGRAHAM SLEEGRANDINOTEGUTWIREHARBETHHARMONIC TECHNOLOGYHARMONIXHECOHiFiMANI-QUALISOL - 8ISOTEKIsoAcousticsJ JJAMOJEFF ROWLANDJELCOJMRKEFKIMBER KABLEKLIPSCHKOETSUKORAKR AUDIOLEBENLEHMANN AUDIOLES DAVIS AUDIOLESS LOSSLEVIN DESIGNLITTLE FWENDLITTLE FWENDLIVING VOICEMACTONEMASTERSOUNDMERASONMICROMEGAMILTYMISTRALMIT CABLESMIYAJIMA LABSMOFIMOFIMOONMOONRIVERMOOO MATMURASAKINOMUSIC HALLMUSICAL FIDELITYMY SONIC LABNAFNAGAOKANASOTECNAT AUDIONIME AUDIODESIGNNITTY GRITTYNORDOSTOEHLBACHOKKI NOKKIONKYOOPERAORB AUDIOORTOFONOYAIDEPARASOUNDPHASEMATIONPHILIPSPHONARPLINIUS AUDIOPRIMAREPRIMAREPS AUDIOPSVANEQ ACOUSTICSQEDRCAREGARELRICABLEROKSANROOM's AudioSCANDYNASCHROERS & SCHROERSSHELTERSHINOLASHUNYATASIEVEKING SoundSIMPLY ANALOGSINTHESYSSMESOLID TECHSOUL NOTESOUNDSMITHSOVTEKSSCSTAXSUGDENSUMIKOSUPRA CABLESSUTHERLANDSYMPHONIC LINESYMPOSIUM ACOUSTICSSYNTHESISTADTAKATSUKITANNOYTAOCTEKTRONTHORENSTIGLONTITAN AUDIOTON TRAGERTONARTORUS POWERTORUS POWERTRACK AUDIOTRANSFIGURATIONTRANSROTORTRENNER & FRIEDLTRIODE LABTUNG-SOLTUNGSRAMULTRASONEUNISON RESEARCHVENTOVERMOUTHVIV LABVIVID AUDIOVPIWATTGATEWAVACWIREWORLDWOODEN BULLYAMAMOTOYTER CABLESZAVFINOZESTO AUDIOZYXfo.QhORNS Produs: --- Selecteaza produs ---
Imagine

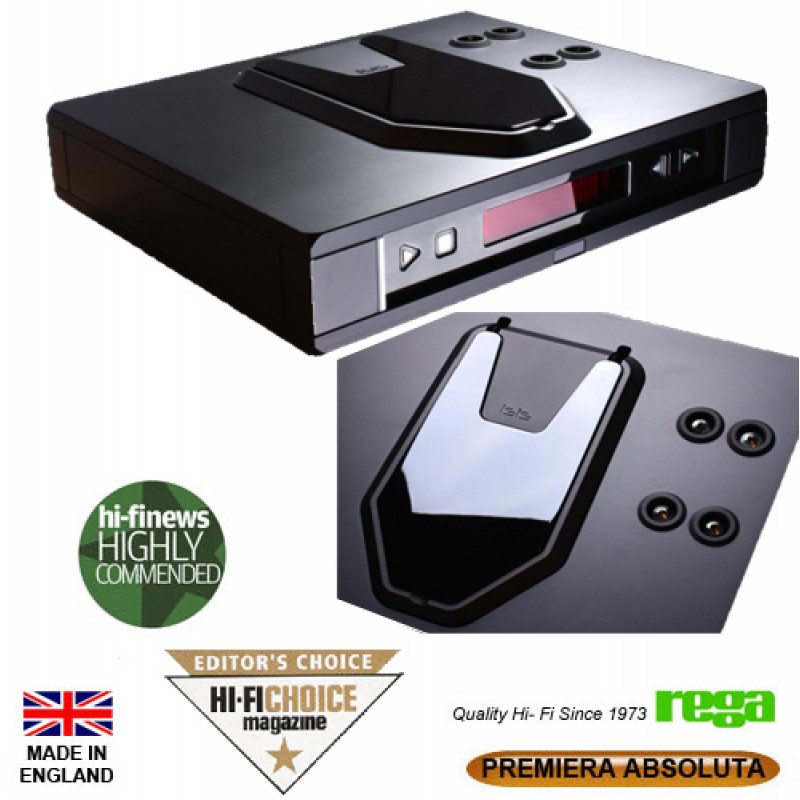

Produs	REGA CD Player Ultra High-End Isis Valve
